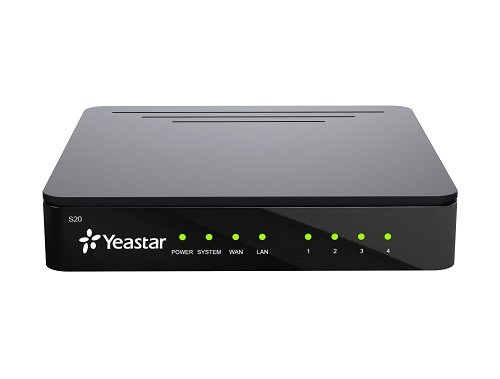

Yeastar IP PABX – S20 VoIP PBX

  • 20 Users
  • 10 Concurrent Calls
  • Up to 4 FXS/FXO/BRI Ports
  • Up to 1 GSM/3G/4G Channel
  • Security : protected from Internet hackers and viruses with built-in firewall, TLS, SRTP, and more.
  • Performance : powered by Freescale ARM A9 industrial grade quad-core CPU processors.
  • Easy to use : save time with streamlined installation. Manage PBX on the intuitive web GUI.

Yeastar PBX IP adalah PBX IP sistem telepon yang berdiri sendiri menawarkan berbagai fitur yang tak tertandingi untuk usaha kecil dengan kurang dari 20 pengguna. Ini mendukung 10 panggilan bersamaan dan berbagai kombinasi hingga 4 port telephony termasuk FXS, FXO (PSTN)


Product Specification

Users 20
Max Concurrent Calls 10
Max Analog Ports(FXO/FXS). 4
Max BRI Ports 4
Max Cellular Ports (GSM/3G/CDMA). 1
Max E1/T1/J1 Ports
VoIP Trunks 20
Protocol SIP (RFC3261), IAX2
Transport Protocol UDP, TCP, TLS, SRTP
Codec G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4
DTMF In-band, RFC4733, RFC2833, SIP INFO
LAN 1 × 10/100 Mbps
WAN 1 × 10/100 Mbps
IP Services Static IP, DHCP, VPN, Firewall, VLAN, DDNS, PPPoE, QoS, Static NAT, STUN
Voicemail 5000 min (expandable)
Firewall Yes
T.38 Fax Yes
App Center Yes
External Storage TF Card
Power DC 12V 1A
Size (L x W x H) (cm) 16 x 16 x 3
Weight 0.3 kg
Power Consumption 1.8-10.6 W
Environment Operation Range: 0°C to 40°C, 32°F to 104°F; Storage Range: -20°C to 65°C, -4°F to 149°F; Humidity: 10-90% non-condensing
Mounting Desktop & Wall-mount, plastic case


Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian, Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish.


Yeastar S20 Package Contents:

  • S20 IP-PBX
  • Power adapter
  • Network cable
  • 2x telephony line
  • 4x rubber feet
  • Quick installation guide
  • Warranty card


Product Features

Ÿ Automated Attendant (IVR)
Ÿ Attended Transfer
Ÿ Blind Transfer
Ÿ Blacklist/Whitelist
Ÿ Call Back
Ÿ Call Detail Records (CDR)
Ÿ Call Forwarding
Ÿ Call Monitor
Ÿ Call Parking
Ÿ Call Pickup
Ÿ Call Recording
Ÿ Call Routing
Ÿ Call Waiting
Ÿ Caller ID
Ÿ Conference
Ÿ Custom Prompt
Ÿ Dial by Name
Ÿ Distinctive Ringtone
Ÿ Do Not Disturb (DND)
Ÿ Event Center
Ÿ Email to SMS/SMS to Email
Ÿ Fax to Email
Ÿ Follow Me
Ÿ Paging/Intercom
Ÿ Mobility Extension
Ÿ Multi-language System Prompt
Ÿ Multi-language Web GUI
Ÿ Music on Hold
Ÿ One Touch Recording
Ÿ Queue
Ÿ PIN List
Ÿ Phone Provisioning
Ÿ Real-time Status Monitor
Ÿ Ring Group
Ÿ SIP Forking
Ÿ Speed Dial
Ÿ Time Condition
Ÿ User Portal
Ÿ User Permission
Ÿ Video Calls
Ÿ Voicemail
Ÿ Voicemail to Email
Ÿ Voicemail Forwarding
